INDUSTRIAL APPLICATIONS
- Mainteance Repair
- Process Piping
- Fabrication
- Aluminum Ship Repair
- Precision Fabrication
FEATURES
- DC TIG Features : Exceptionally smooth and precise arc for welding exotic materials
- DC inverter : For TIG with advanced inverter technology to optimize arc performance. Improved TIG Starting. Now starts DC(-) to maintain sharp tungsten
- AC TIG Features : Extended AC balance (20-80%) controls the amount of oxide cleaning, which is essential for high quality welds on aluminium
- Advance squarewave, fast freezing puddle, deep penetration and fast travel speeds
- Frequency (0.5-300Hz) controls the width of the arc cone and the force of the arc
- Thermal overload protecton protection with indicator light helps prevent machine damage if the duty cycle is exceeded or airflow is blocked
- 200 amps @ 60% duty cycle is the highest output rating in this machine class

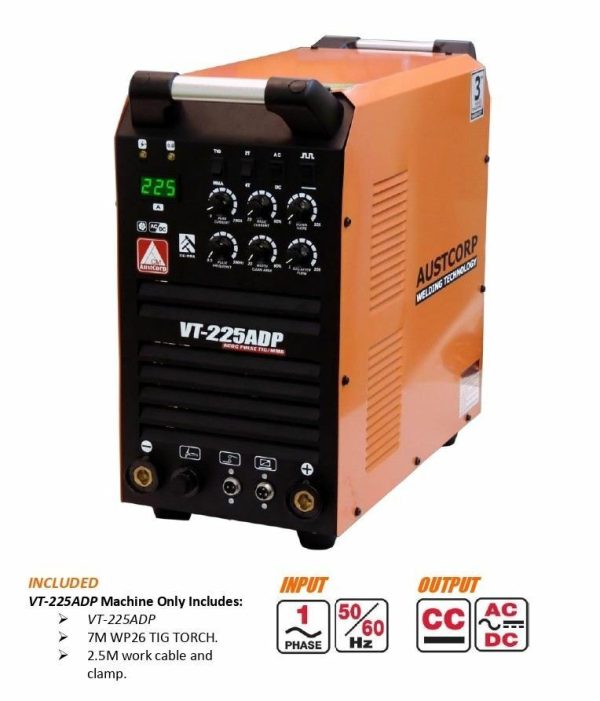

The inverter VT- 225ADP offers much more than you would expect from a welder this size. Weighing in at just under 20.7kg the inverter VT-225ADP is no lightweight contender. It packs the full punch of a heavyweight professional that can take to the most demanding job sites. It can operate from a portable generator.

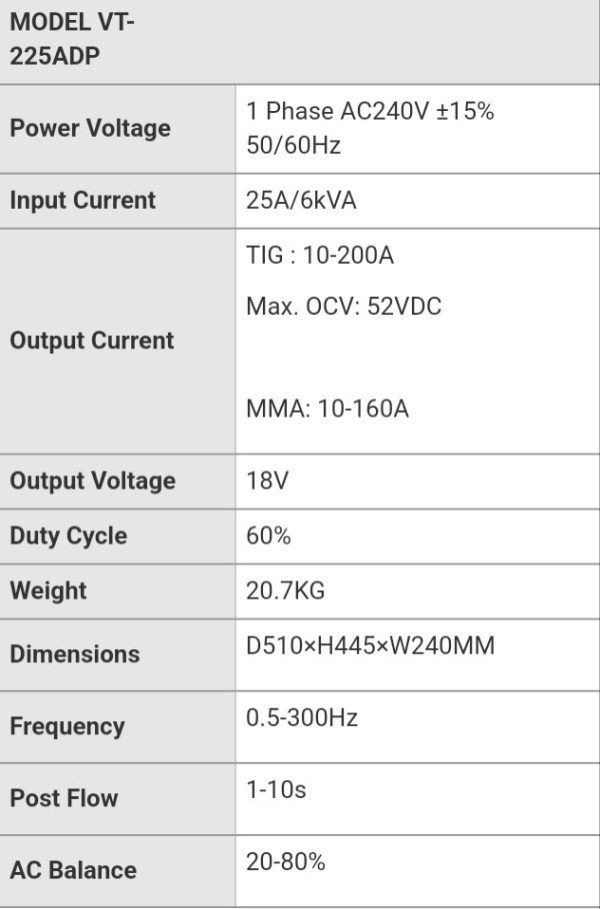

Power Voltage: 1 phase AC240V + 15% 50/60Hz
Input Current: 25A / 6 kVA
Frequency : 0.5-300 Hz
TIG Output : 10-200A Max. OCV : 52VDC
