Plasma Cutting CMAX 45 V-FOCUS TECHNOLOGY

INDUSTRIAL  APPLICATIONS

• Maintenance
• Light Construction
• Prototyping
• Body shops
• Fabrication
• HVAC Dutcwork

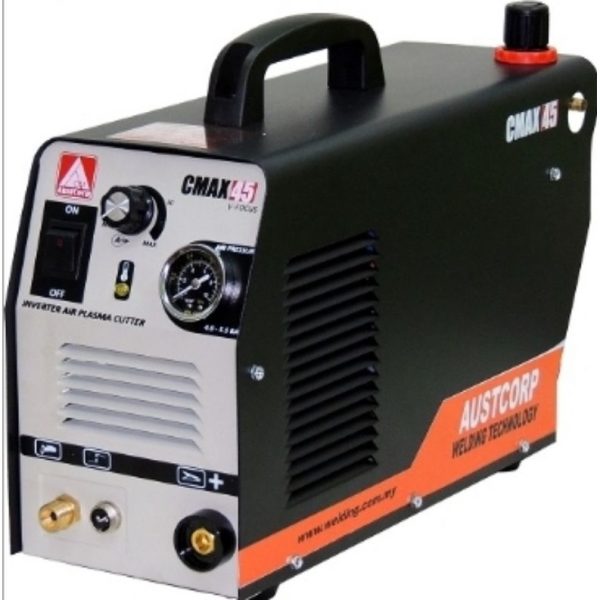

CMAX 45 plasma cutting systems offers much more than you would expect from a welder this size. Weighing in at just under 9kg the Inverter CMAX-45 is no lightweight contender. It packs he full punch of a heavyweigt professional that can take to the most demanding job sites. It can operates from a portable generator. FEATURES

• Touch start system-  Reliable plasma arc initiation with high frequency
• Postflow cooling circuit - extends the life of the consumables and torch by cooling them with postflows air after the trigger is released (15 - 20s)
• Long consumable life - new heavy duty electrode and nozzle design save you money in the long run
• Thermal overload protection with indicator light - help prevent machine damage if the duty cycle is exceeded or airflow is blocked

PROCESSES Air plasma cutting INCLUDED  CMAX 45 Machine Only Includes:

• CMAX 45
• 5M SG55 PLASMA TORCH
• 2.5M work cable and clamp

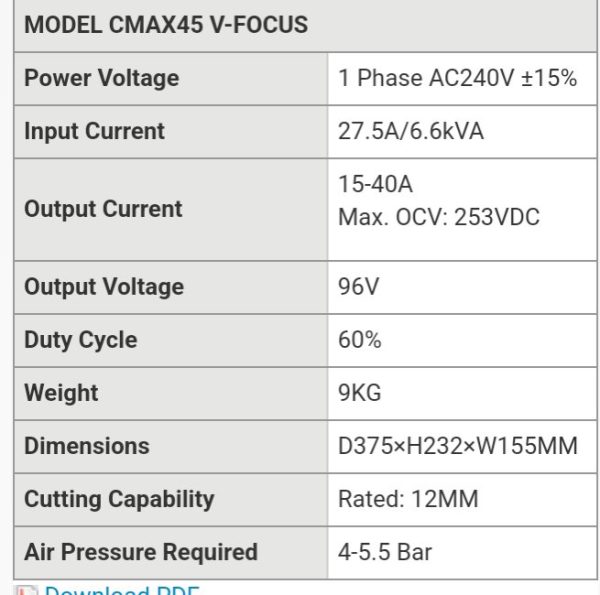

INPUT CURRENT

• 27.5A / 6.6KVA

OUTPUT CURRENT

• 15-40 A ( Max. OCV : 253VDC)

OUTPUT VOLTAGE

• 96V

POWER VOLTAGE

• 1 Phase AC240V + 15%

CUTTING CAPABILITY :

• Rated: 12mm

AIR PRESSURE REQUIRED: 4-5.5 Bar
