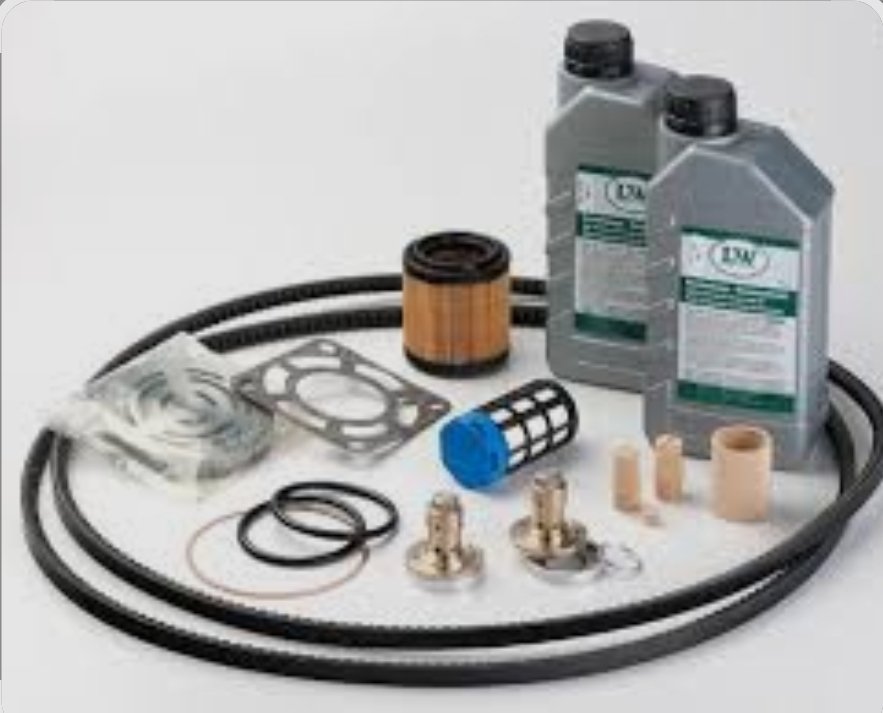

LW service kit LW 230/280/320 E/ES/EC mit (c/w) ACD

Service Kit 1000 hours
Service Kit contains below mentioned parts:
2 x 002123 – Sinter filter (water separator 1st + 2nd stage)
2 x 001255 – O-ring (water separator 1st + 2nd stage)
2 x 000184 – Sinter filter (oil filter, oil separator)
1 x 001294 – O-ring (oil separator)
1 x 000188 – Sinter filter (pneumatic condensate valve)
2 x 001287 – O-ring (filter housing)
2 x 001285 – Back-up ring (filter housing)
1 x 000435 – O-ring (oil filter)
1 x 000170 – Intake filter cartridge
1 x 000178 – Silencer of oil separator
2 x 000001 – Compressor oil (2l)

Service Kit 2000 hours
Service Kit contains below mentioned parts:
2 x 002123 – Sinter filter (water separator 1st + 2nd stage)
2 x 001255 – O-ring (water separator 1st + 2nd stage)
2 x 000184 – Sinter filter (oil filter, oil separator)
1 x 001294 – O-ring (oil separator)
1 x 000188 – Sinter filter (pneumatic condensate valve)
2 x 001287 – O-ring (filter housing)
2 x 001285 – Back-up ring (filter housing)
1 x 000435 – O-ring (oil filter)
1 x 000170 – Intake filter cartridge
1 x 000178 – Silencer of oil separator
2 x 000001 – Compressor oil (2l)
1 x 002093 – In- and outlet valve 1st stage
1 x 000257 – Upper valve gasket 1st stage
1 x 000258 – Lower valve gasket 1st stage
1 x 000542 – In- and outlet valve 2nd stage incl. gasket
1 x 000543 – In- and outlet valve 3rd stage incl. gasket
